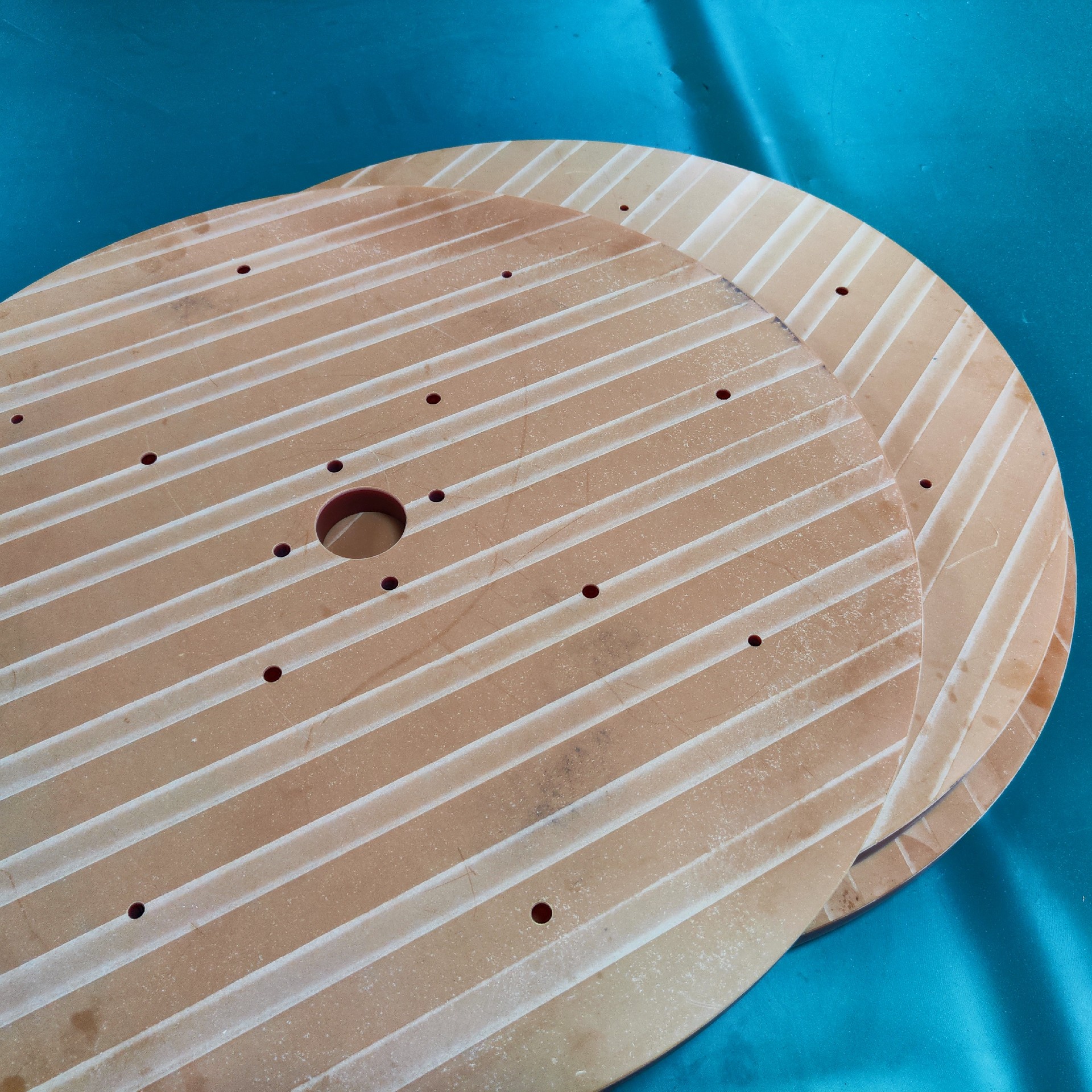

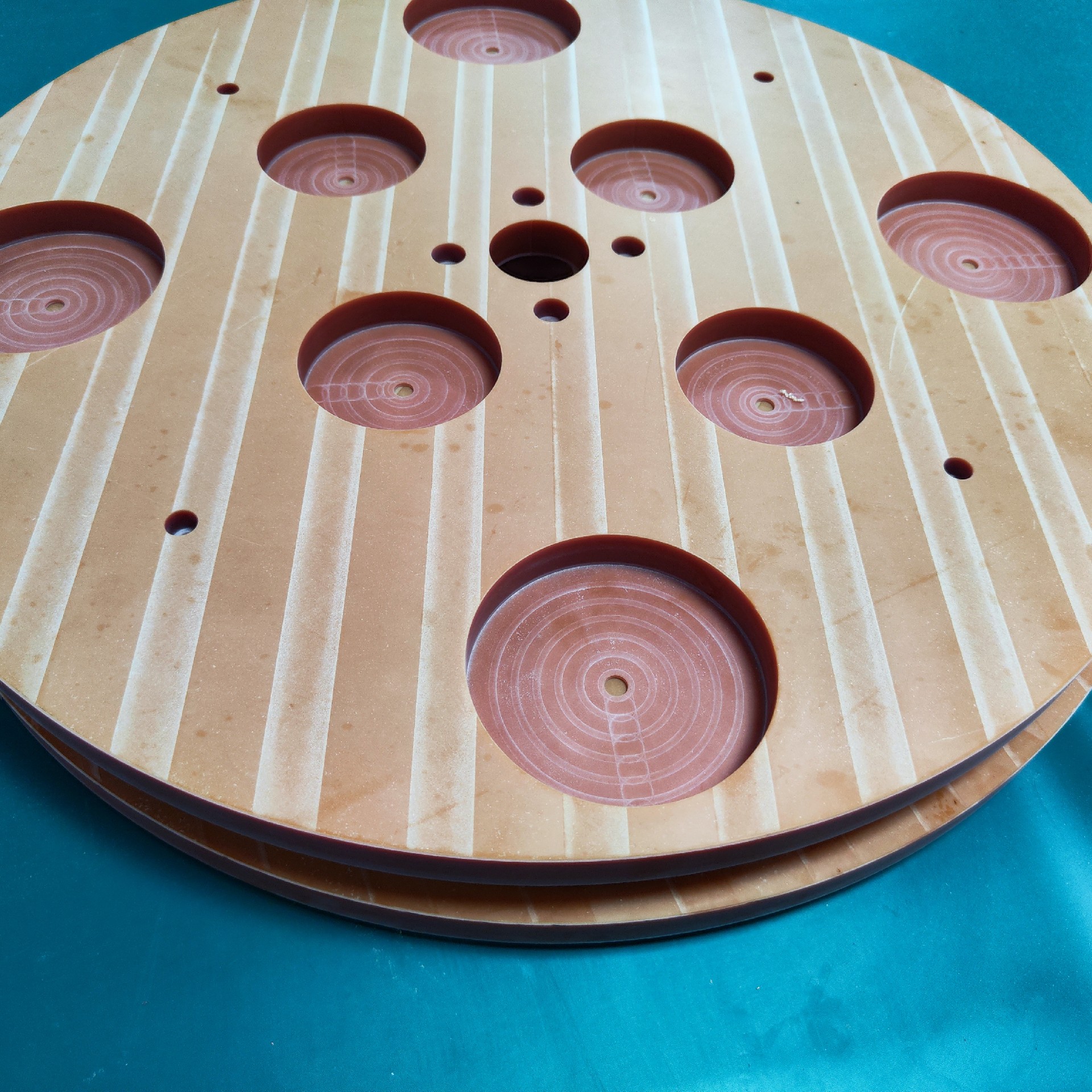

Custom Precision CNC Machined Bakelite & Phenolic Board Component
Custom CNC machined Bakelite and phenolic laminate insulation components with high precision. ISO-certified factory providing OEM electrical and mechanical insulation parts based on your 2D/3D drawings. Contact us for a free quote!
- Information
Custom Precision CNC Machined Bakelite & Phenolic Board Component
We provide high-precision CNC machining services for custom Bakelite (phenolic paper and cotton laminates) and insulation board components. Known for excellent electrical insulation, high mechanical strength, and outstanding heat resistance, our custom machined Bakelite parts are extensively used in electrical switches, transformers, fixtures, jigs, and mechanical machinery.
Product Specifications
| Feature / Parameter | Detail / Capabilities |
| Product Name | Custom CNC Machined Bakelite Insulation Component |
| Material Options | Bakelite Sheet, Phenolic Paper Laminate (HP2061), Phenolic Cotton Sheet (Hgw2082) |
| Machining Process | CNC Milling, Precision Drilling, Routing, Tapping, Counterboring |
| Tolerance | ±0.02 mm to ±0.05 mm |
| Thermal Grade | Class E (120°C) / Class B (130°C) |
| Features | High Dielectric Strength, Wear Resistance, Mechanical Rigidity, Thermal Insulation |
| Application | Electrical Switchgears, Transformers, PCB Test Fixtures, Insulating Spacers, Jigs |
| Quality Control | 100% Dimensional Inspection, Material Test Report (MTR) Available |
Key Advantages & Capabilities
Superior Electrical Insulation: Outstanding dielectric resistance makes Bakelite an ideal material for low-to-medium voltage electrical applications.
Excellent Mechanical Rigidity: High flexural and tensile strength ensures stability under heavy mechanical stress and wear conditions.
Precision CNC Processing: Equipped with high-speed CNC routers and milling tools to deliver burr-free edges, smooth surfaces, and strict dimensions.
Custom OEM Solutions: Tailored manufacturing according to your 2D/3D CAD drawings (STEP, IGES, DWG, PDF).
Why Choose Our Machining Services?
With rich experience in non-metallic and composite material fabrication, our engineering team offers full DFM (Design for Manufacturability) analysis to optimize your parts for high precision, durability, and cost efficiency.
Send us your CAD drawings today to get an instant competitive quote!
