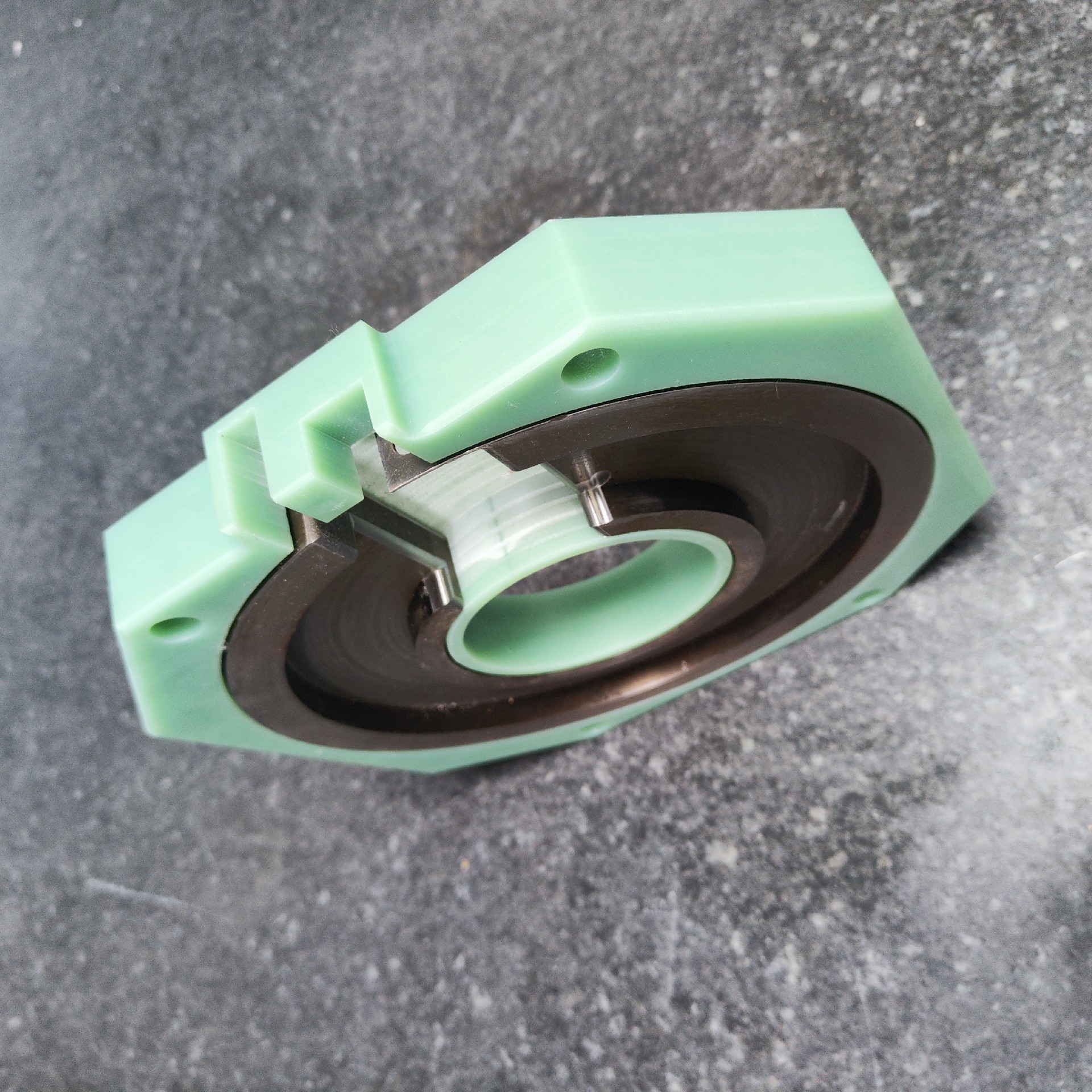

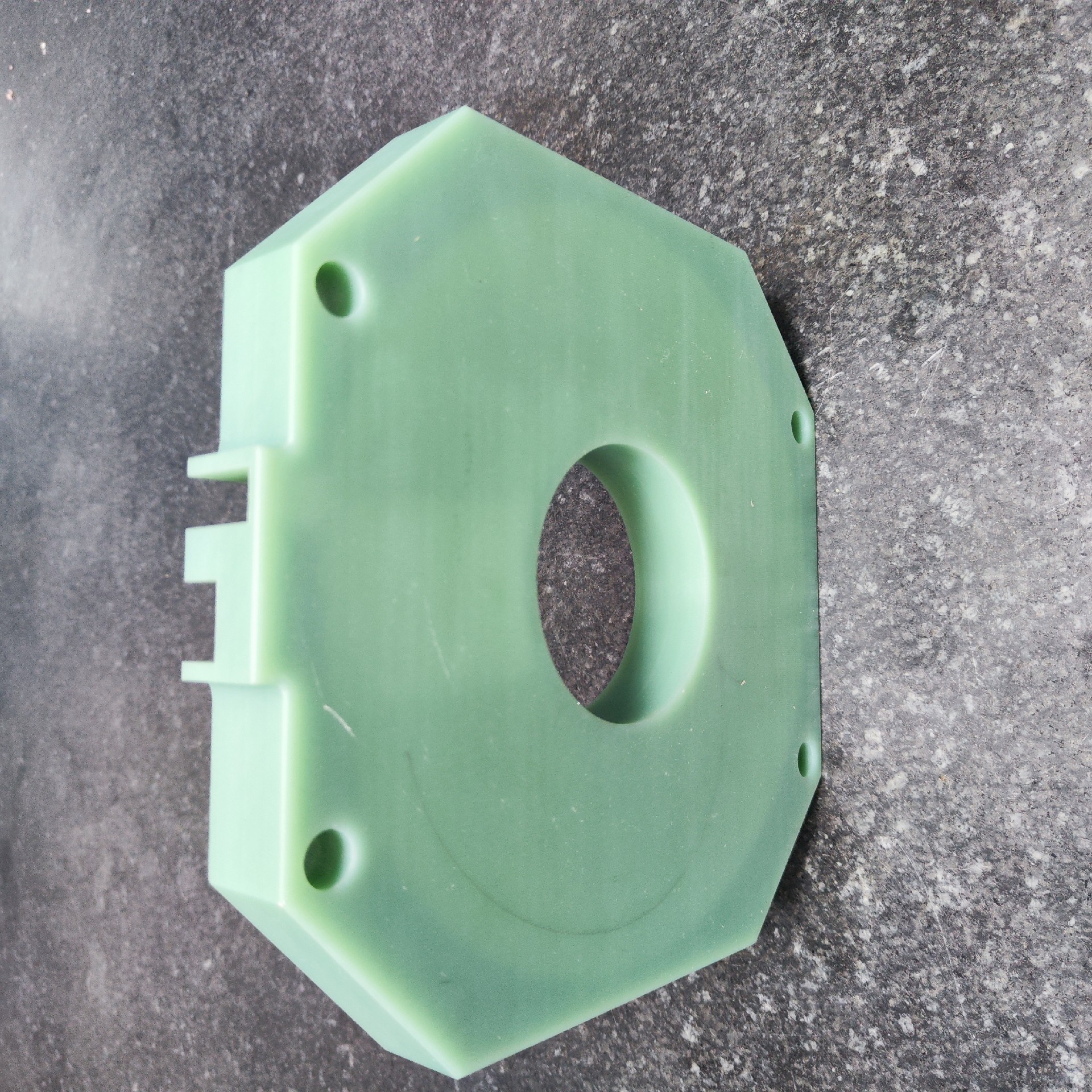

Custom Precision CNC Machined Epoxy Sheet & G10 FR4 Insulation Component
Custom CNC machined epoxy sheet and FR4/G10 insulation components with high precision. ISO-certified factory providing OEM electrical and mechanical insulation parts according to your 2D/3D drawings. Contact us for a free quote!
- Information
Custom Precision CNC Machined Epoxy Sheet & FR4 Insulation Component
We offer high-precision CNC machining services for custom epoxy resin sheets, FR4, and G10 glass epoxy insulation boards. Engineered for superior electrical insulation, high mechanical strength, and excellent thermal resistance, our custom machined epoxy parts are widely used in electrical equipment, transformers, power distribution systems, and electronic fixtures.
Product Specifications:
| Feature / Parameter | Detail / Capabilities |
| Product Name | Custom CNC Machined Epoxy Sheet Component |
| Material Options | Epoxy Resin Sheet, FR4, G10, Bakelite, 3240 Epoxy Glass Cloth Board |
| Machining Process | CNC Milling, Precision Drilling, Routing, Tapping, Cutting |
| Tolerance | ±0.02 mm to ±0.05 mm |
| Thermal Grade | Class B (130°C) / Class F (155°C) / Class H (180°C) |
| Features | High Dielectric Strength, Flame Retardant (UL94 V-0), Moisture Resistance |
| Application | Electrical Insulation, Transformers, Circuit Breakers, Switchgears, Jig Fixtures |
| Quality Control | 100% Dimensional Inspection, Material Test Report (MTR) Available |
Key Advantages & Capabilities:
Excellent Electrical Insulation: Outstanding dielectric strength and insulation resistance suitable for high-voltage and high-frequency environments.
High Mechanical Strength: Machined from dense epoxy glass cloth laminates, offering great impact strength, flexural rigidity, and wear resistance.
Precision CNC Processing: Advanced CNC routers and milling machinery ensure strict tolerances and smooth edge finishing without burrs.
Custom OEM Solutions: Tailored production according to your 2D/3D CAD drawings (STEP, IGES, DWG, PDF).
Why Choose Our Machining Services?
With extensive experience in non-metallic and composite material fabrication, our engineering team provides complete DFM (Design for Manufacturability) support to optimize your part designs for cost-efficiency and performance.
Send us your CAD drawings today to get an instant competitive quote!
